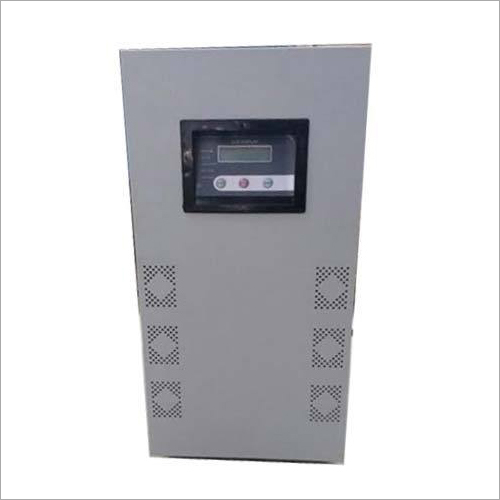

Online UPS

Online UPS
Online UPS
Product Code : 02
Brand Name : GTB ENERGY LLP
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

1 Phase Input - 1 Phase Output


Technology

DSP based with true galvanic isolation

Capacity


INPUT



No. of Phases

1Phase-3Wire

Voltage Range

170 V - 280 Volts AC

Input Frequency Range

47 to 53Hz.

OUTPUT



Load PF Range

0.8 lagging

Phase

1 Phase -3 Wire (P,N,E)

Output Waveform

Pure Sine Wave

Voltage

230 V +/-1%

Frequency

50Hz +/-0.1%

Output Voltage THD

<=3% on Linear Load

Loading Capacity

110% for 2 Minutes

BY-PASS



Maintenance By-Pass

Auto Available

BATTERIES



No. of 12V Batteries


Voltage


Battery Charging current

0.7 Amp to 15 Amp

Battery Recommendation

From 7.2 Ah to 180 Ah

Battery Self Test

Automatic

GENERAL



Indication

LCD & LED Pannel

Alarm

Mains Failure, Battery Low, Over Load Short Circuit

Protection

Short Circuit , Over Voltage & Under Voltage Protection.

Cooling

Forced Air Cooling

UPS Efficiency

> 85%

Operating Temperature

0-55DegC

Operating Humidity

95% Condensing

Accoustic Noise

<45 Db at 1 meter

Protection Class

Ip20

3 Phase Input - 1 Phase Output


Technology

DSP based with true galvanic isolation

Capacity


INPUT



No. of Phases

3Phase-5Wire

Voltage Range

290 V - 480 Volts AC

Input Frequency Range


OUTPUT



Load PF Range

0.8 lagging

Phase

1 Phase -3 Wire (P,N,E)

Output Waveform

Pure Sine Wave

Voltage

230 V +/-1%

Frequency

50Hz +/-0.1%

Output Voltage THD

<=3% on Linear Load

Loading Capacity

110% for 2 Minutes

BY-PASS



Maintenance By-Pass

Auto Available

BATTERIES



No. of 12V Batteries


Voltage


Battery Charging current

0.7 Amp to 15 Amp

Battery Recommendation

From 7.2 Ah to 180 Ah

Battery Self Test

Automatic

GENERAL



Indication

LCD & LED Pannel

Alarm

Mains Failure, Battery Low, Over Load Short Circuit

Protection

Short Circuit , Over Voltage & Under Voltage Protection.

Cooling

Forced Air Cooling

UPS Efficiency

> 85%

Operating Temperature

0-55DegC

Operating Humidity

95% Condensing

Accoustic Noise

<45 Db at 1 meter

Protection Class

Ip20

3 Phase Input - 3 Phase Output


Technology

DSP based with true galvanic isolation

Capacity

7.5 KVA

INPUT



No. of Phases

3Phase-5Wire

Voltage Range

290 V - 480 Volts AC

Input Frequency Range

47 to 53Hz.

OUTPUT



Load PF Range

0.8 lagging

Phase

3 Phase -5 Wire (R,Y,B,N,E)

Output Waveform

Pure Sine Wave

Voltage

400 V +/-2% (P-P), 230V (P-N)

Frequency

50Hz +/-0.1%

Output Voltage THD

<=3% on Linear Load

Loading Capacity

110% for 8 Minutes / 130 % for 1 Minute / 150% for 10 Second,

BY-PASS



Maintenance By-Pass

Auto Available

BATTERIES



No. of 12V Batteries

20

Voltage

240 VDC

Battery Charging current

0.7 Amp to 15 Amp

Battery Recommendation

From 7.2 Ah to 180 Ah

Battery Self Test

Automatic

GENERAL



Indication

LCD & LED Pannel

Alarm

Mains Failure, Battery Low, Over Load Short Circuit

Protection

Short Circuit , Over Voltage & Under Voltage Protection.

Cooling

Forced Air Cooling

UPS Efficiency

> 85%

Operating Temperature

0-55DegC

Operating Humidity

95% Condensing

Accoustic Noise

<45 Db at 1 meter

Protection Class

Ip20

Trade Information
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • depends Per Month
  • Delivery Time
  • 1 Week
  • Packaging Details
  • depend on requirement of product
  • Main Domestic Market
  • North India
